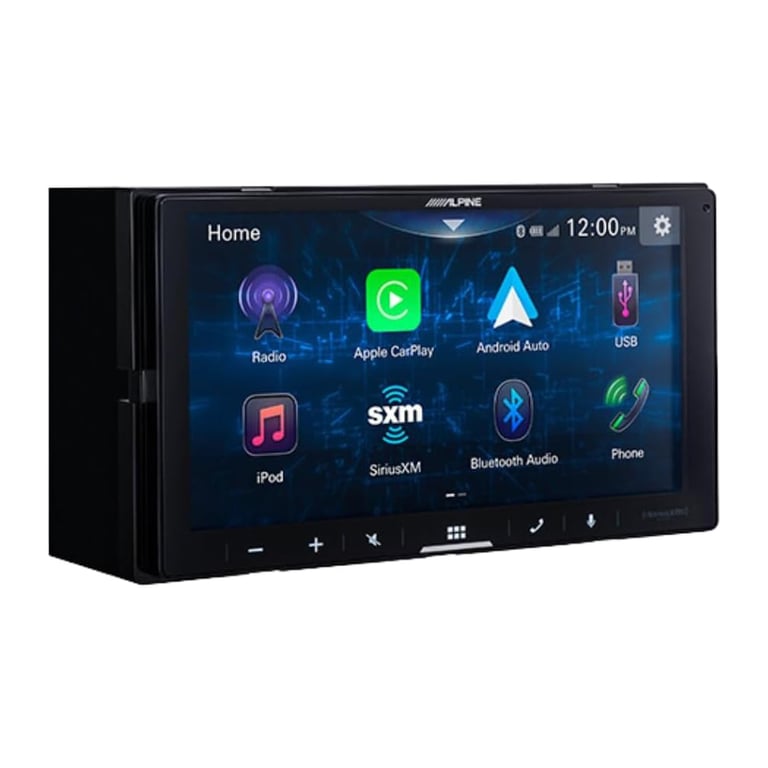

Alpine ILX-W770M

Product Details

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver
• 6.75" Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 16 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Mech-less stereo design, does not play disc
• Fits in standard 4" tall double-DIN dash openings
• Features 5-color key illumination (red, green, blue, amber, white)
• Customizable home screen (add your own background image)
• PowerStack capable by mounting amplifiers directly at the back (sold separately):
• Alpine KTA-200M or Alpine KTA-450 amplifiers

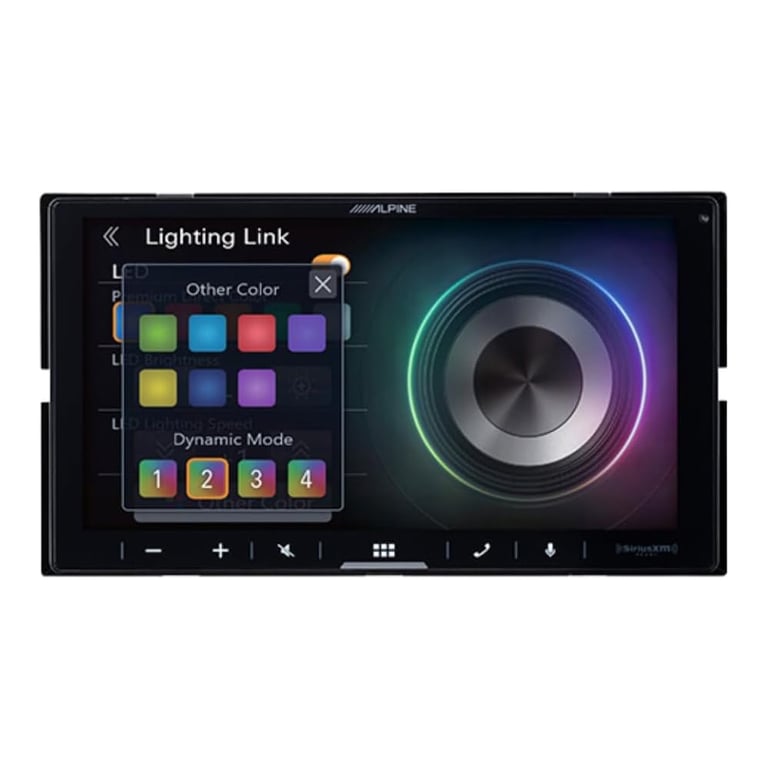

• Lighting link control, compatible with Alpine PrismaLink enclosures (sold separately):
• Alpine S2-SB8, Alpine S2-SB10, or Alpine S2-SB12 subwoofer enclosures

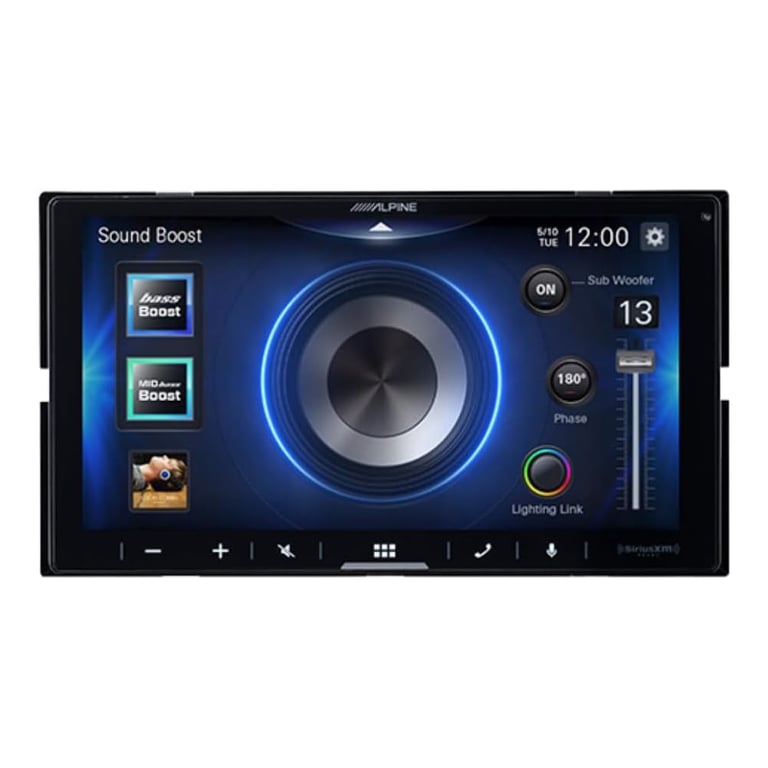

• Features sound boost menu (bass boost, mid-bass boost, and subwoofer controls)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: ILX-W770M

Smartphone Features

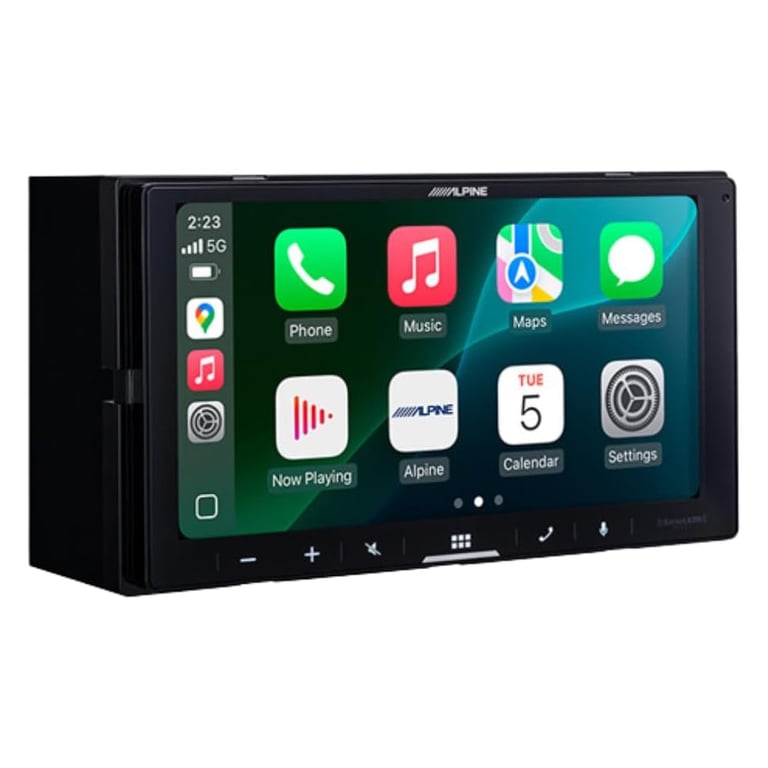

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Siri Eyes Free control for select iPhones or Voice assistant button for Siri or Google Assistant

Playback and Audio Features

• AAC | FLAC | MP3 | WMA Audio Playback
• AVC | FLV | H.264 | MP4 | MPEG-4 | MKV | MOV Video Playback
• AM/FM tuner with 18FM/12AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Updated 3.5mm Mini Jack SWC adapter included
• iDataLink Maestro Compatible: iDataLink ADS-MRR module sold separately

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input

Navigation Features

• Determined by phone connected (iOS/iPhone or Android)
• Maps can be accessed via Apple CarPlay or Android Auto
• Includes External GPS antenna

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a external microphone for clear, convenient, distortion-free talking
